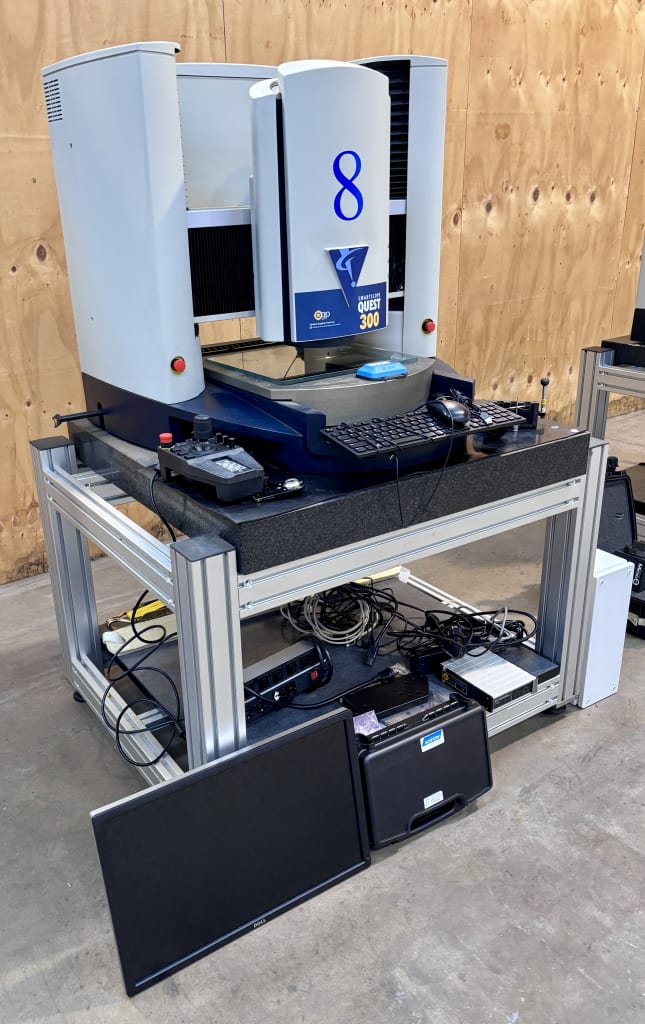

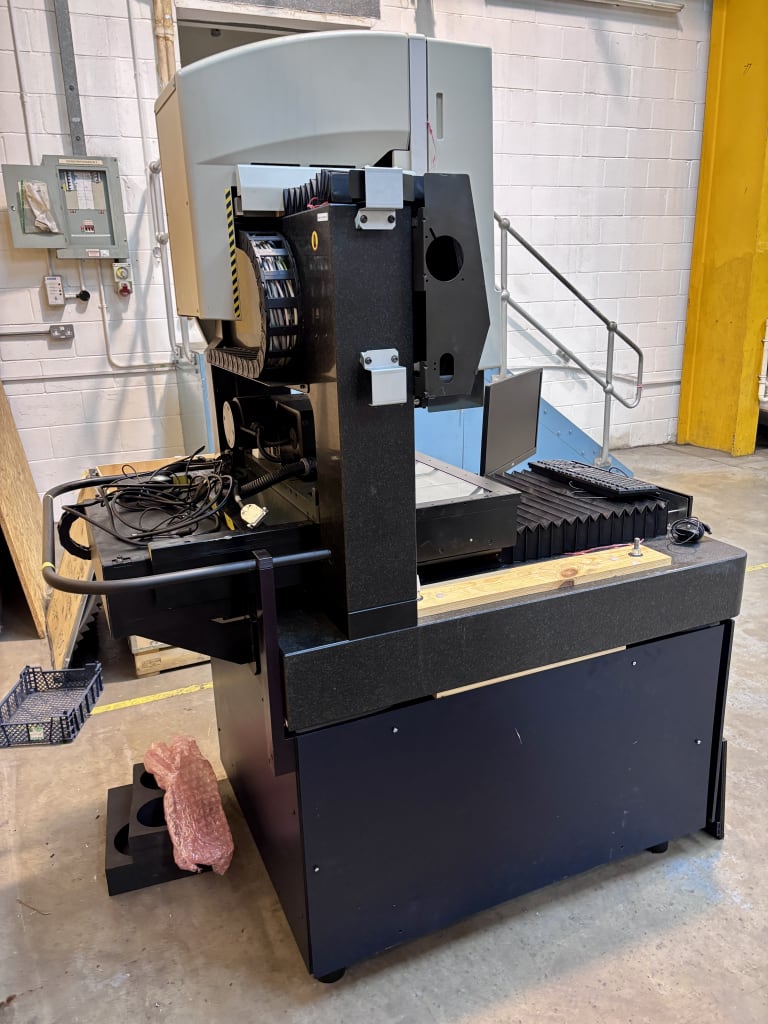

2 × OGP SmartScope 3D Multi-Sensor Measurement Systems

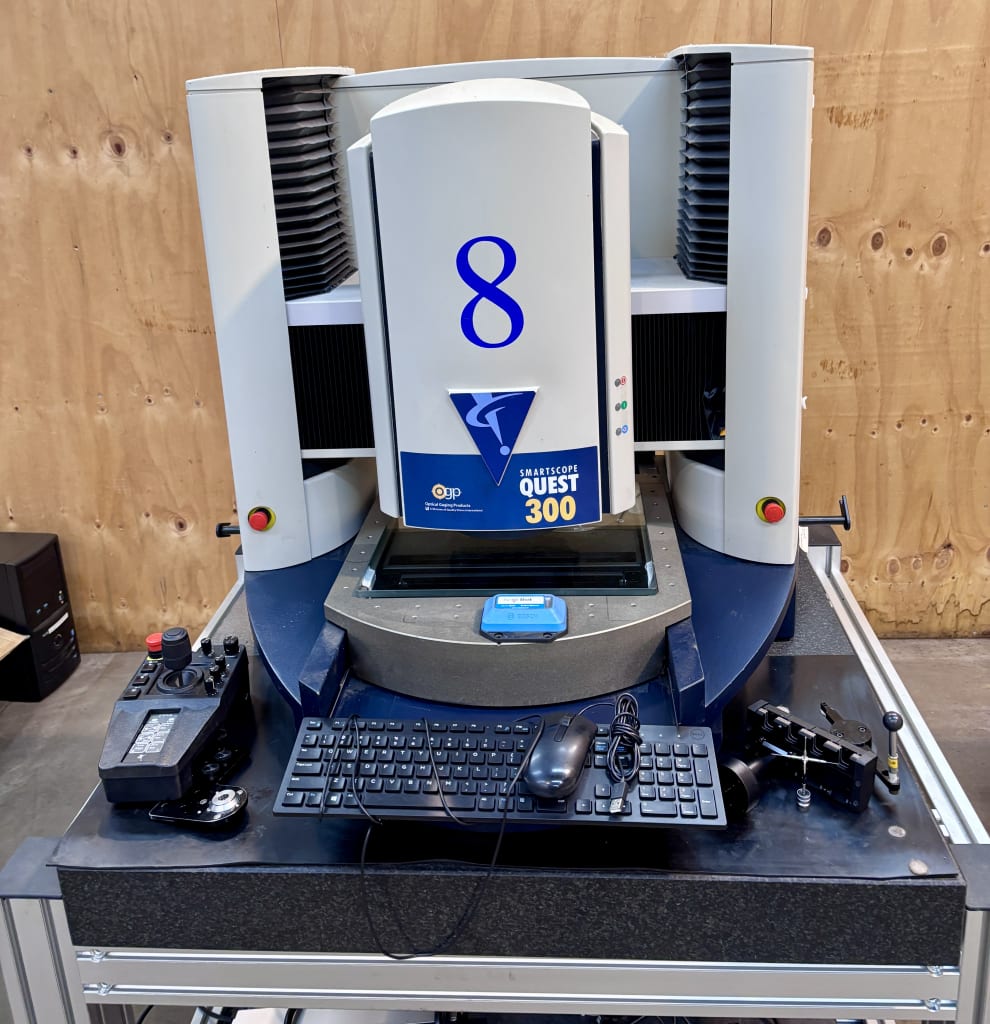

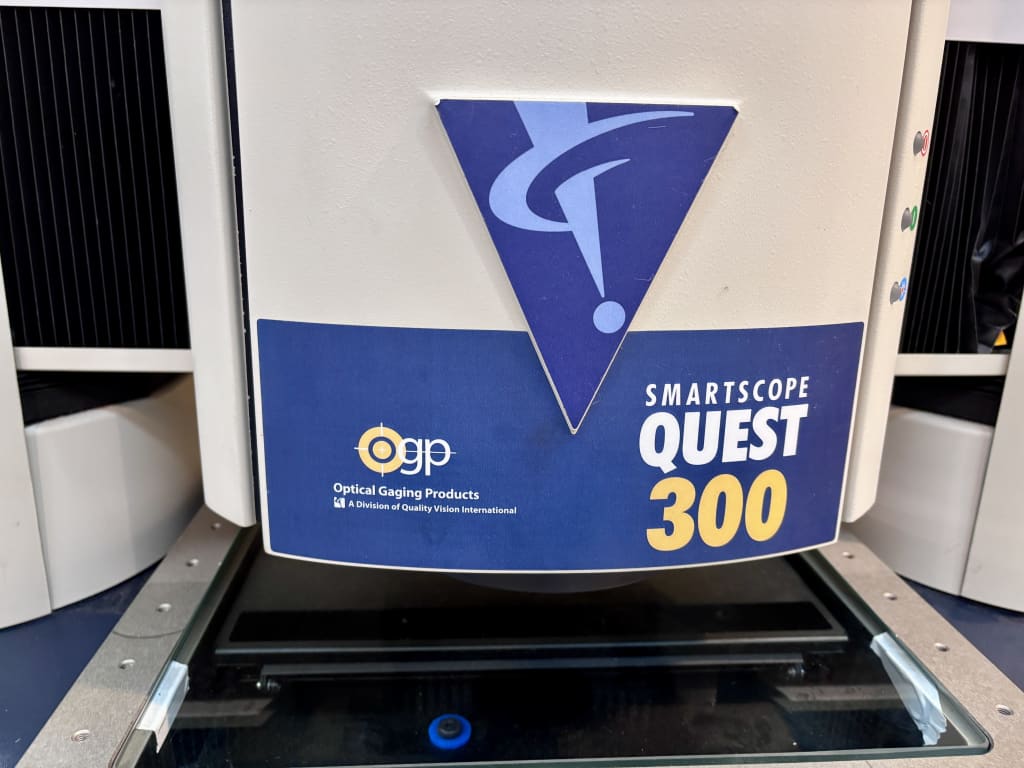

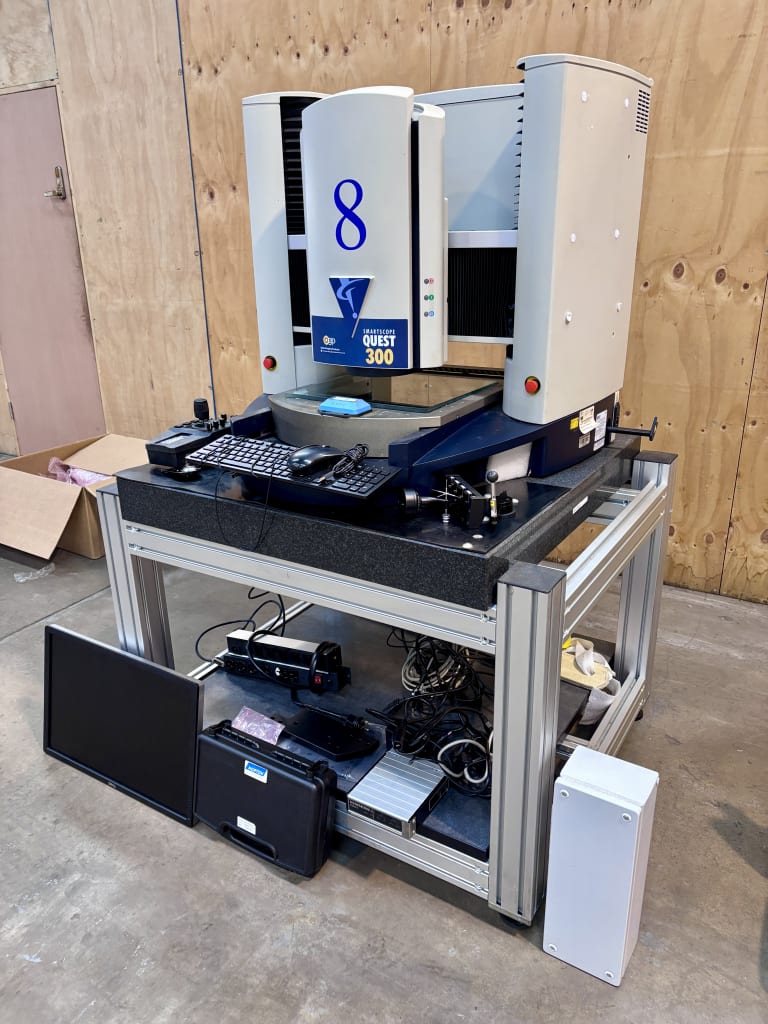

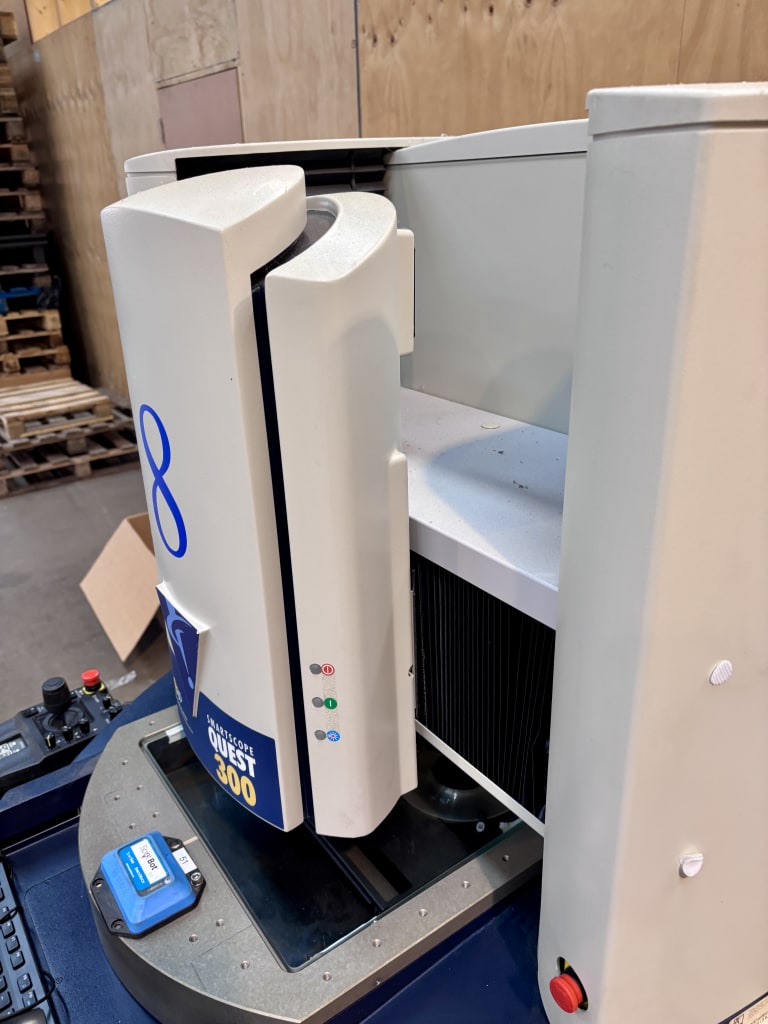

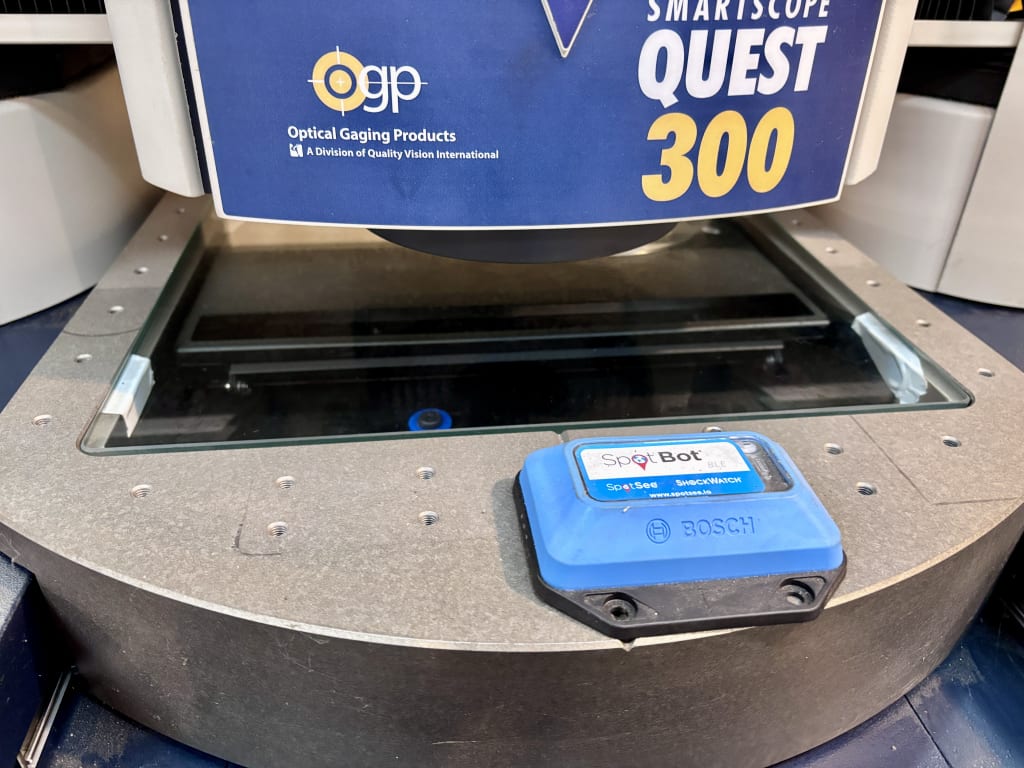

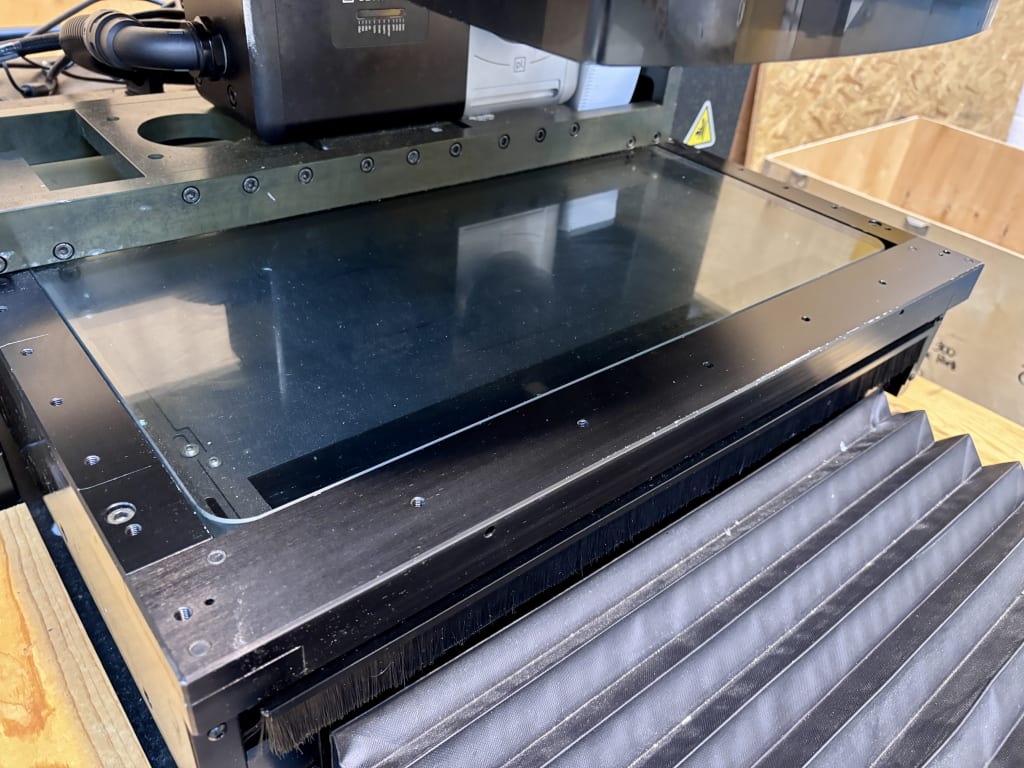

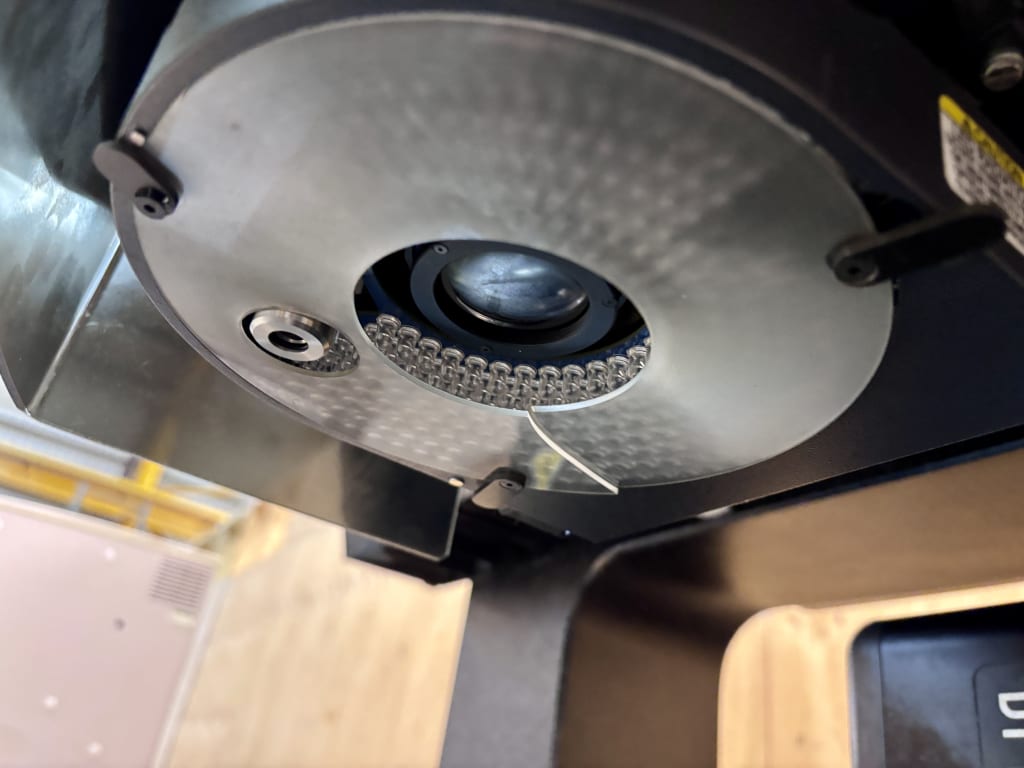

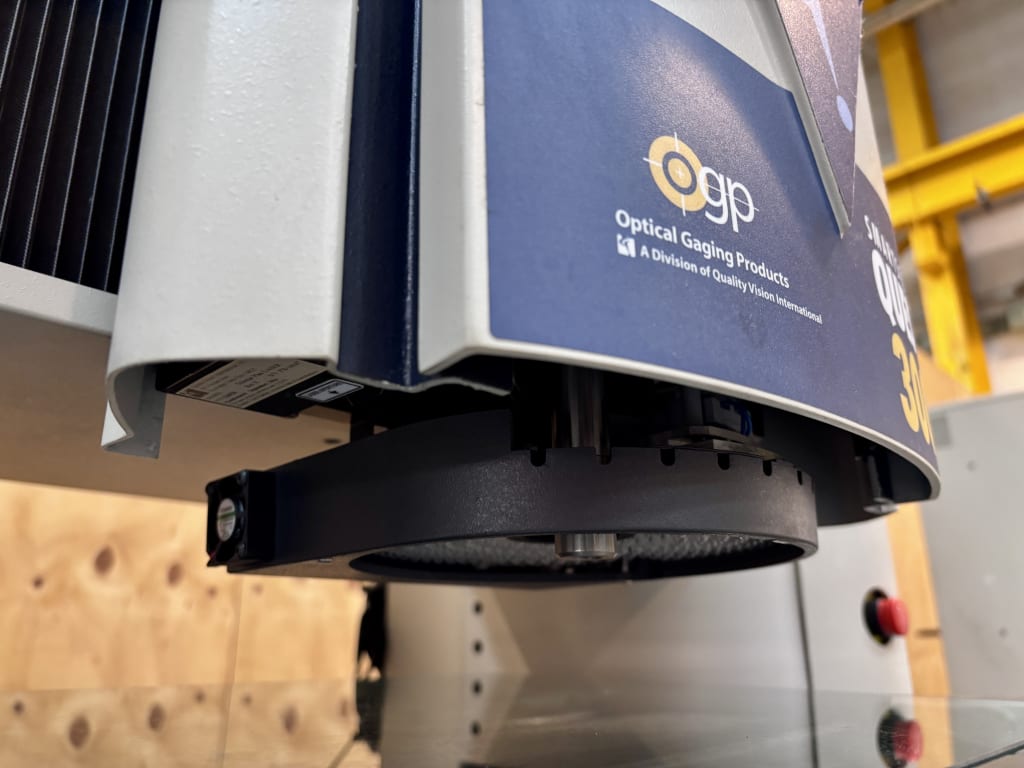

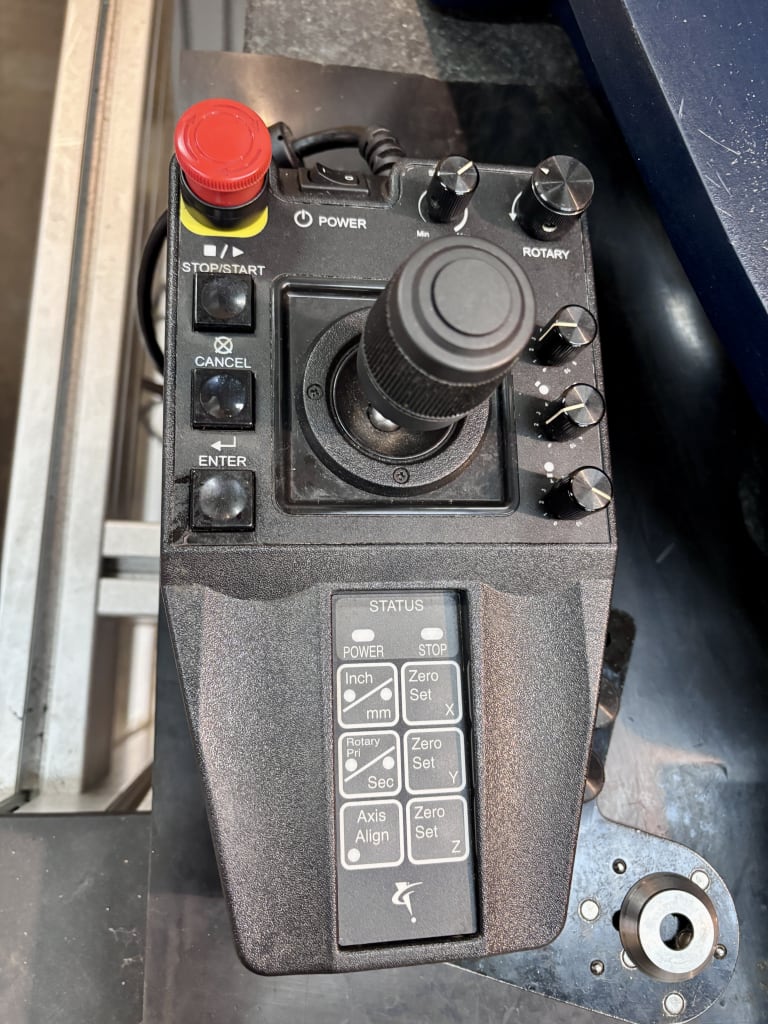

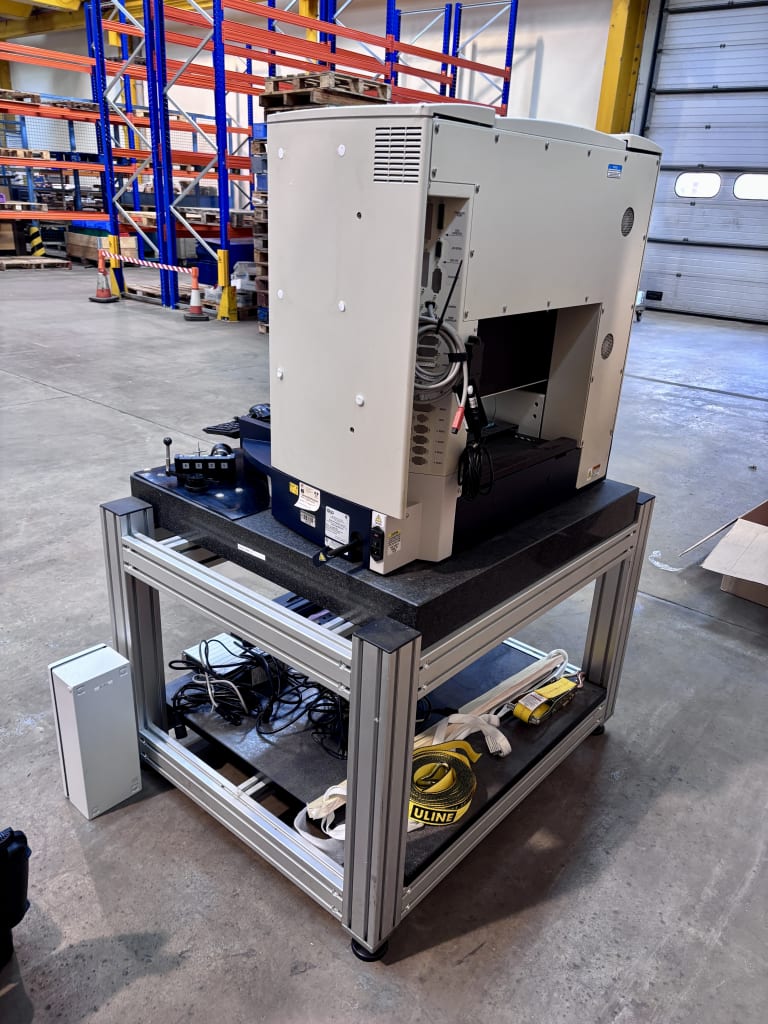

On Granite Table (Dimensions W910 x D910 x 105mm Thick). Axis Travel 'X'=300mm, 'Y'=300mm, 'Z'=250mm. 'XYZ' Scale Resolution: 0.1µm, Including Dual Z-Axis Scales. Drive System: DC Servo With 4-Axis Control (X, Y, Z, Zoom); Air Bearing Z Axis; With Multifunctional Handheld Controller. Worktable: Hardcoat Anodized, With Fixture Holes, Removable Stage Glass, 30kg Recommended Max Payload. Optics: AccuCentric® Auto-Compensating, Fully Telecentric Zoom, Motorized; 1 x Lens. Illumination: Substage LED Profile, Coaxial LED Surface, SmartRing™ LED Ring Light. Metrology Camera: Monochrome Digital Metrology Camera. Field Of View 8.1mm x 6.1mm (Low Zoom) To 0.81mm x 0.61mm (High Zoom). Working Distance 65mm. Power Requirements: 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 Phase, 900W. Compressed Air Requirements: Air Supply Pressure: 0.45 MPa; Minimum Flow Capacity: 32V/min; Air quality ISO 8573-1:2010 Class 4.3.4 Or Better. Safe Operating Environment:15-30°C, Non-Condensing. Rated Environment: Temperature 18-22°C, Stable To ±1°C; Max Rate Of Change 0.5°C/Hour, Max Vertical Gradient 1°C/Metre , 30-80%Humidity, Vibration 0.5<0.001g Below 15 Hz. 'XYZ' Volumetric Accuracy: E, = (3.0 + 5L/ 1,000)µm. 'XY' Area Accuracy E, = (1.5 + 5L/1,000)µm. 'Z' Linear Accuracy E, = (2.5 + 5L/1,000) µm. S/No. SQ3001383 (2016). NOTE: Not CE Registered. This item will be loaded to buyer's vehicle, a loading charge of £100 + VAT will be added to the buyer's invoice.

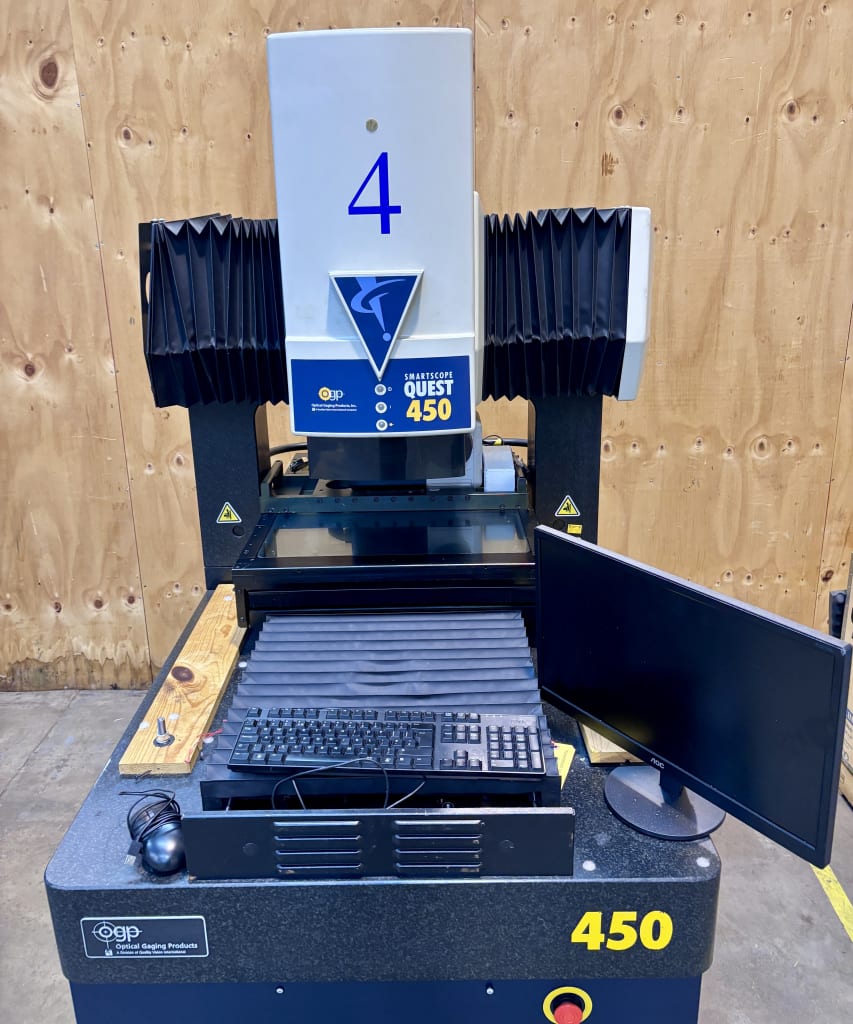

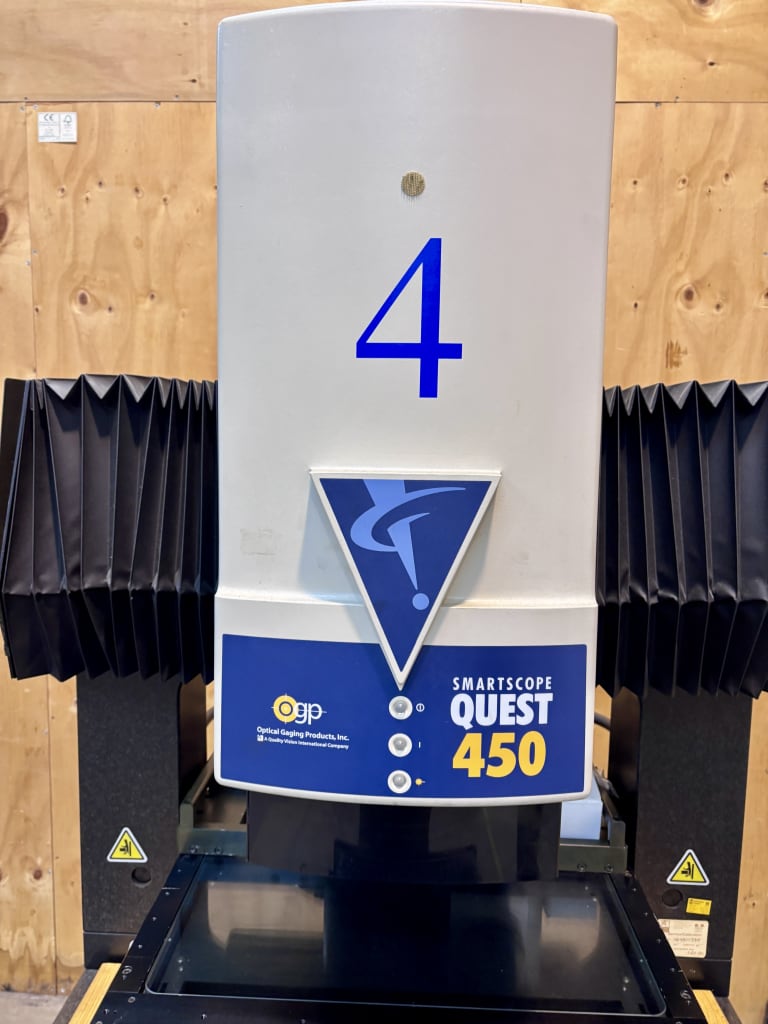

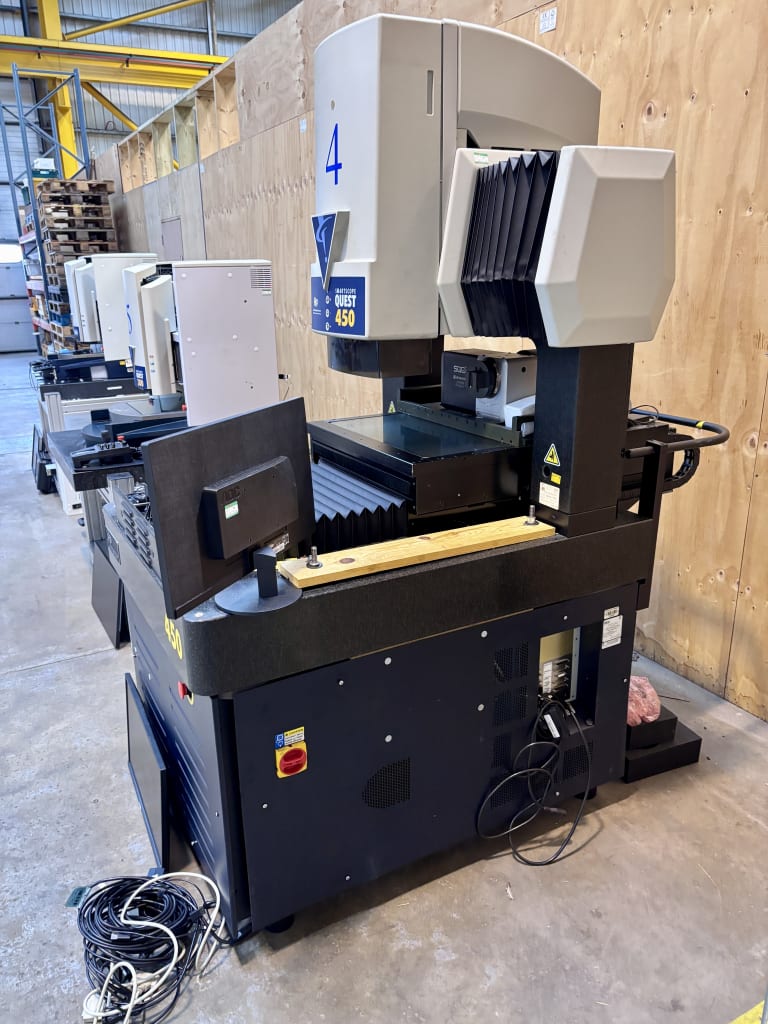

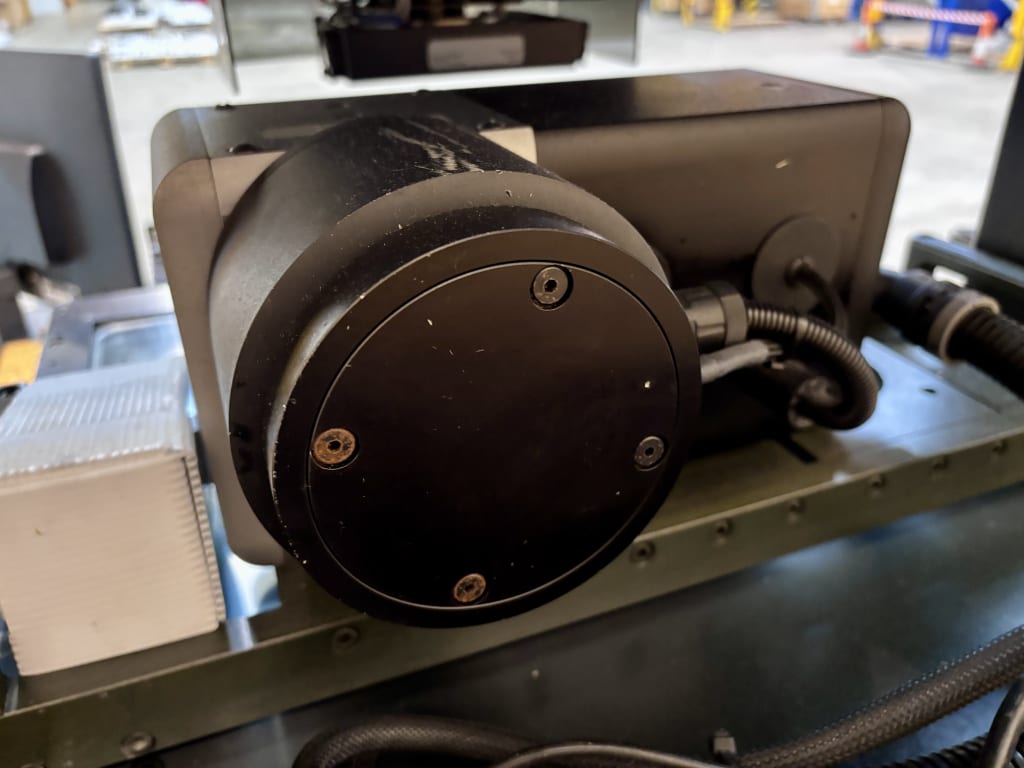

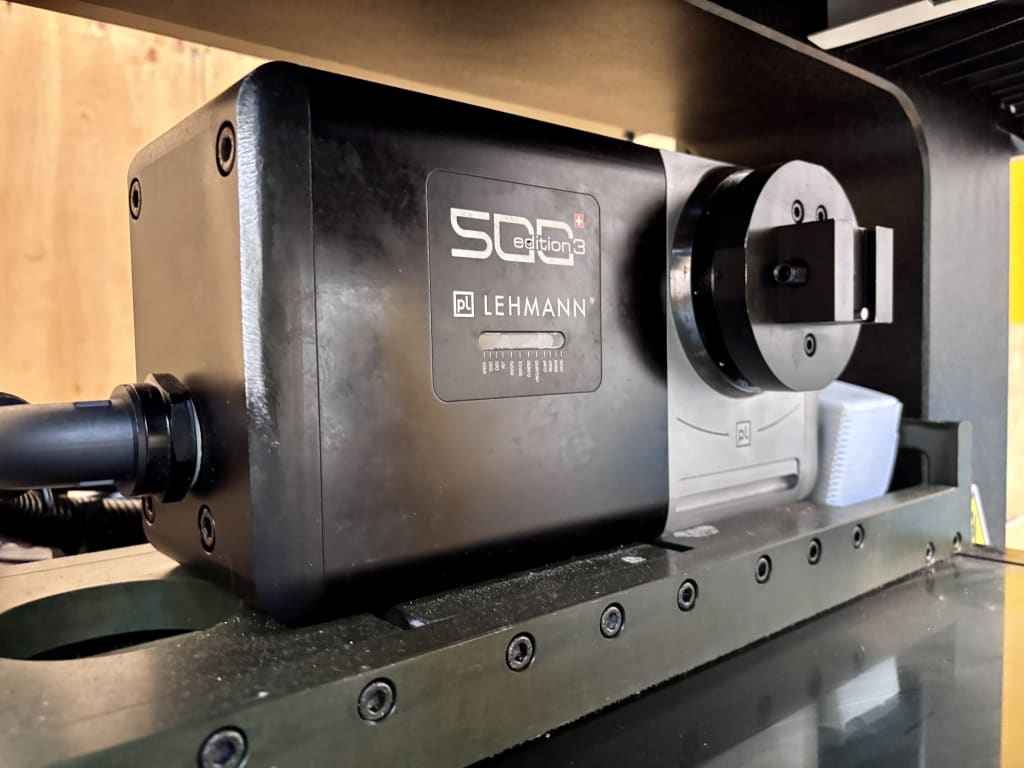

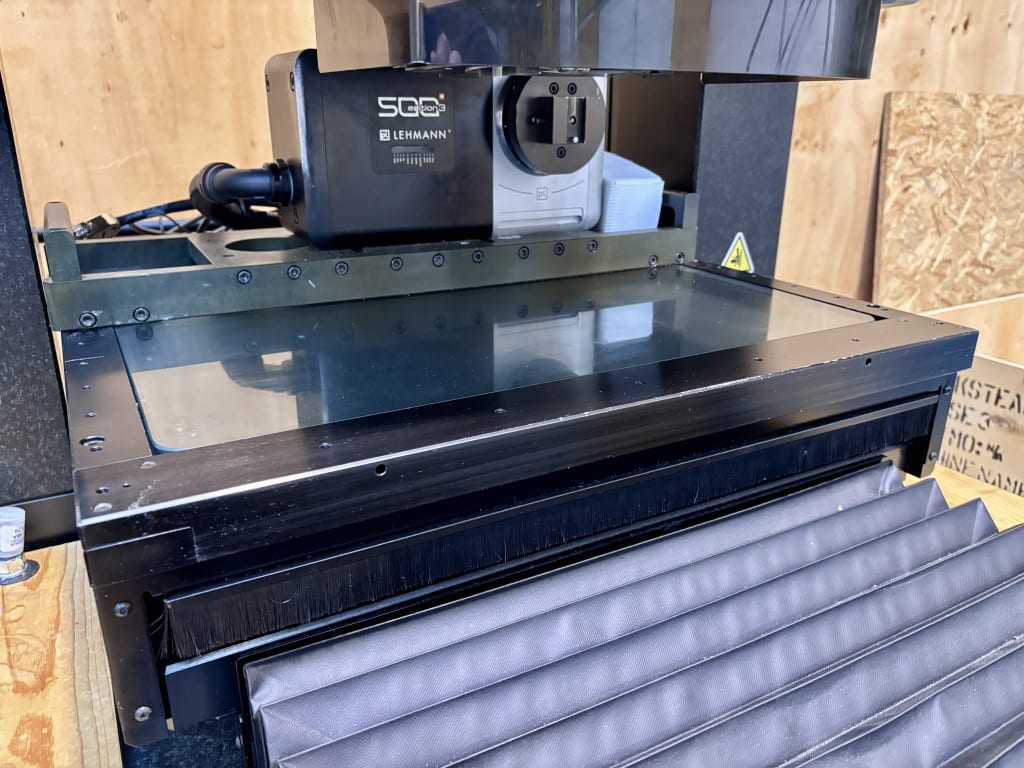

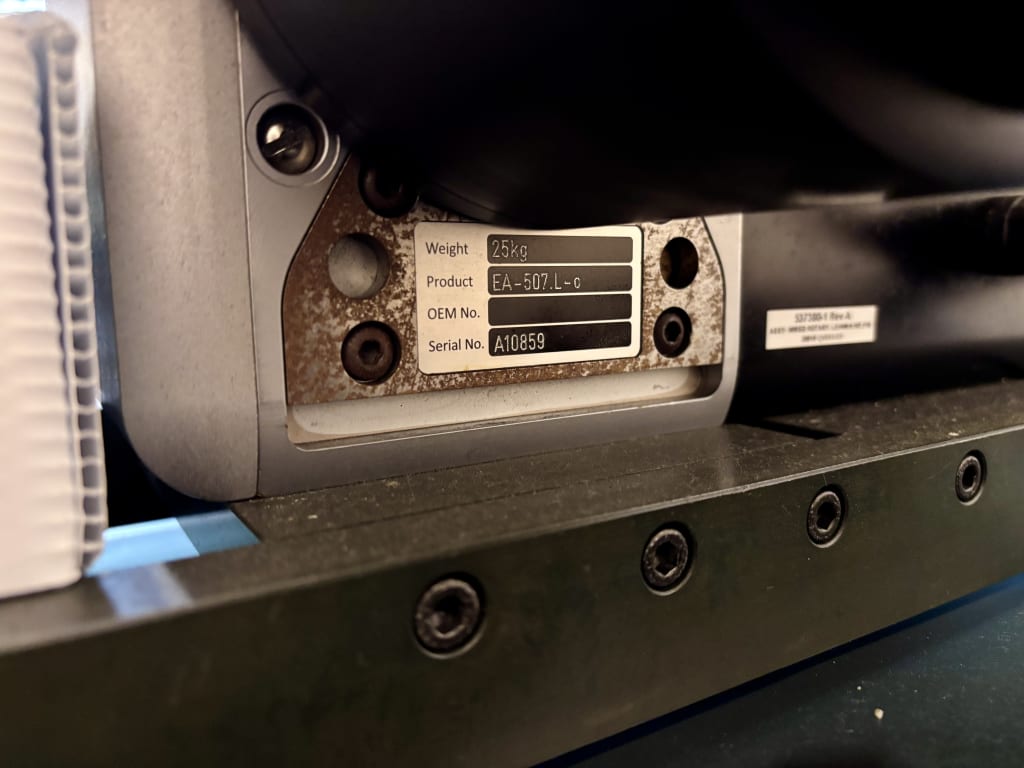

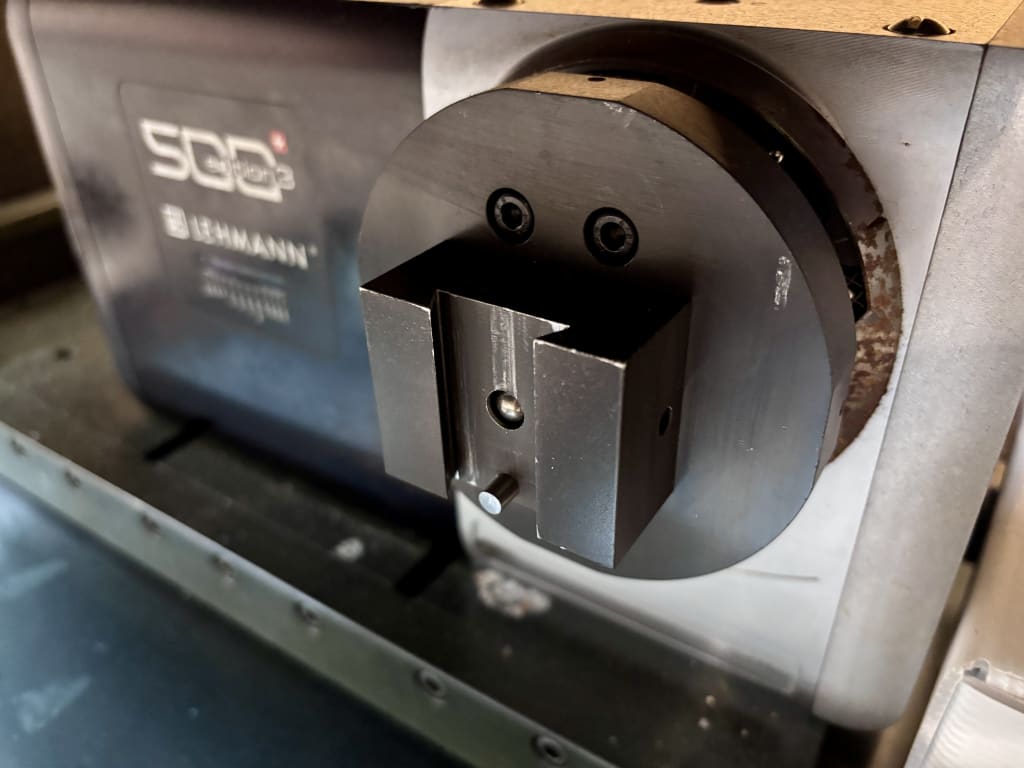

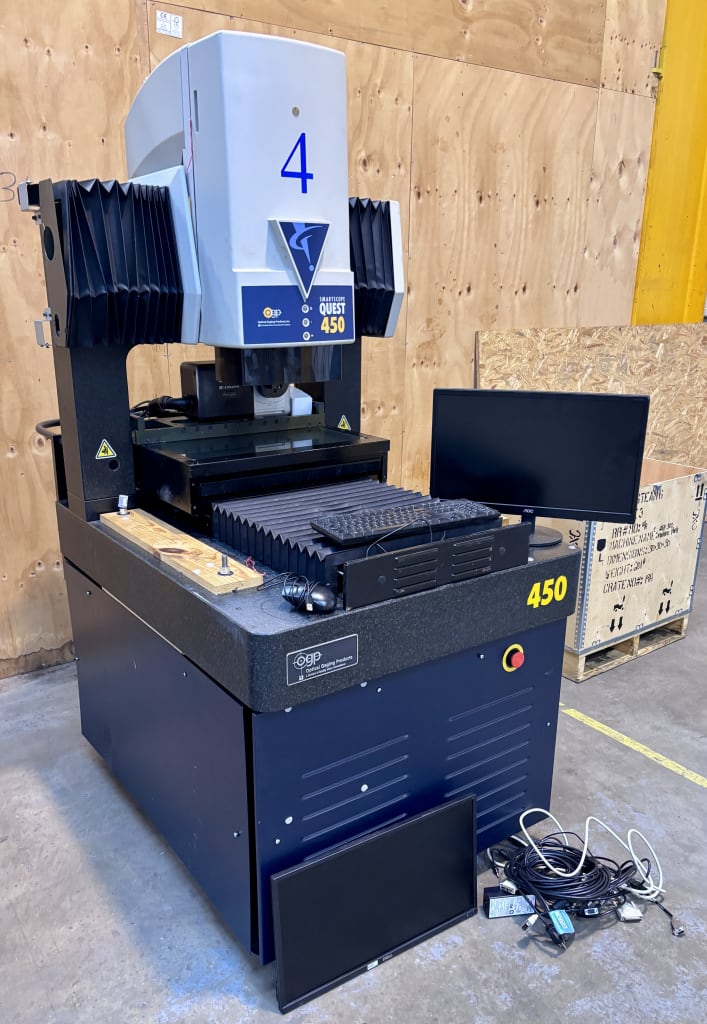

On Granite Table (Dimensions W1,220 x D925 x 165mm Thick). With Lehmann Rotary Table. Axis Travel 'X'=450mm, 'Y'=450mm, 'Z'=250mm. 'XYZ' Scale Resolution: 0.1µm. Drive System: DC Servo With 4-Axis Control (X, Y, Z, Zoom); Air Bearing Z Axis; With Multifunctional Handheld Controller. Worktable: Hardcoat Anodized, With Fixture Holes, Removable Stage Glass, 50kg Recommended Max Payload. Optics: AccuCentric® Auto-Compensating, Fully Telecentric Zoom, Motorized; 1 x Lens. Illumination: Substage LED Profile, Coaxial LED Surface, SmartRing™ LED Ring Light. Metrology Camera: Monochrome Digital Metrology Camera. Field Of View 8.1mm x 6.1mm (Low Zoom) To 0.81mm x 0.61mm (High Zoom). Working Distance 65mm. Power Requirements: 100-120 VAC or 200-240 VAC, 50/60 Hz, 1 Phase, 1,500W. Compressed Air Requirements: Air Supply Pressure: 0.45 MPa; Minimum Flow Capacity: 32V/min; Air quality ISO 8573-1:2010 Class 4.3.4 Or Better. Safe Operating Environment:15-30°C, Non-Condensing. Rated Environment: Temperature 18-22°C, Stable To ±1°C; Max Rate Of Change 0.5°C/Hour , Max Vertical Gradient 1°C/Metre , 30-80% Humidity, Vibration <0.001g Below 15 Hz. 'XYZ' Volumetric Accuracy: E, = (2.5 + 5L/ 1,000)µm. 'XY' Area Accuracy E, = (1.5 + 5L/1,000)µm. 'Z' Linear Accuracy E, = (2.5 + 5L/1,000)µm. S/No. SQ4501385 (2016). NOTE: Not CE Registered. This item will be loaded to buyer's vehicle, a loading charge of £100 + VAT will be added to the buyer's invoice.
