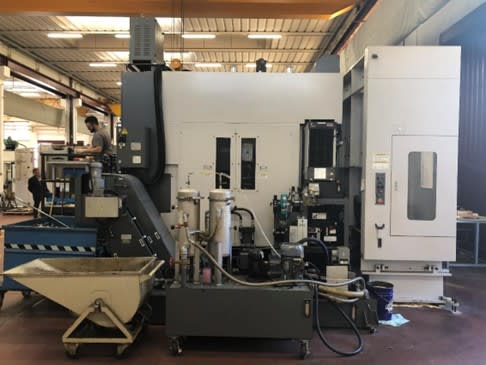

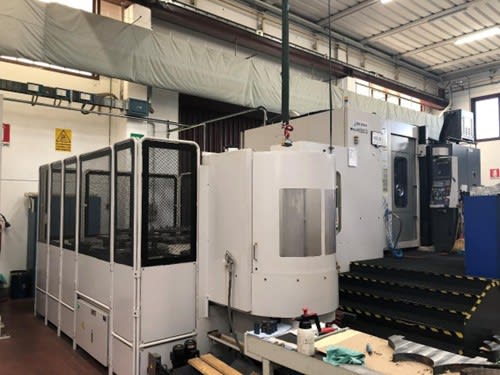

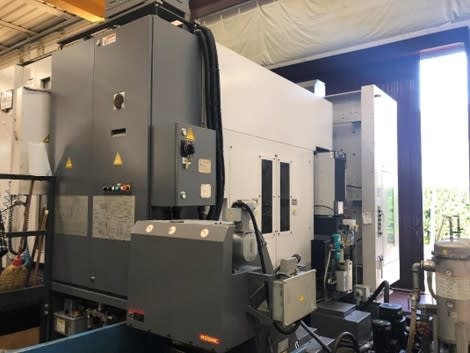

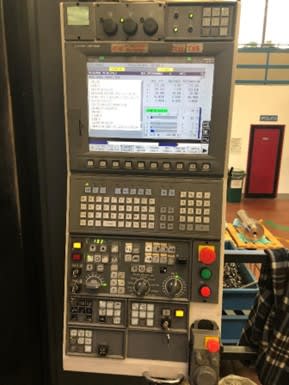

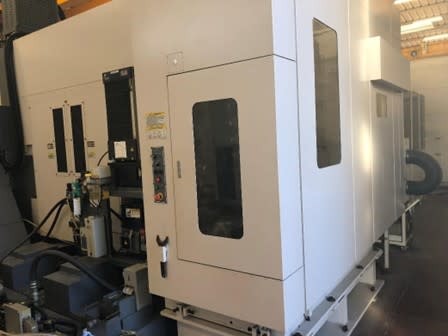

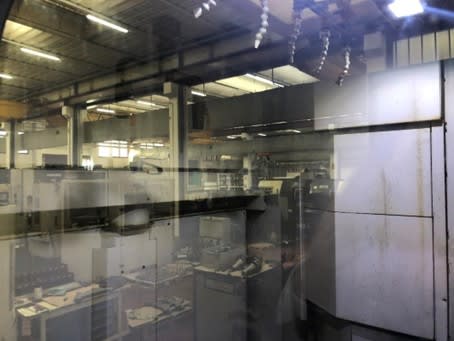

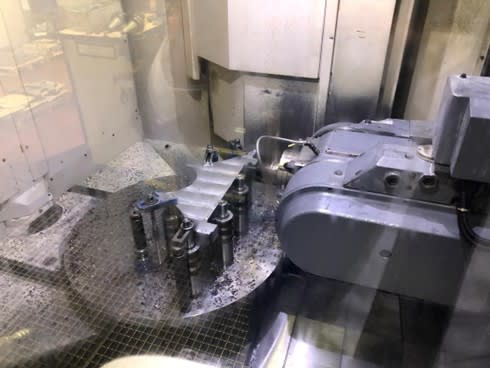

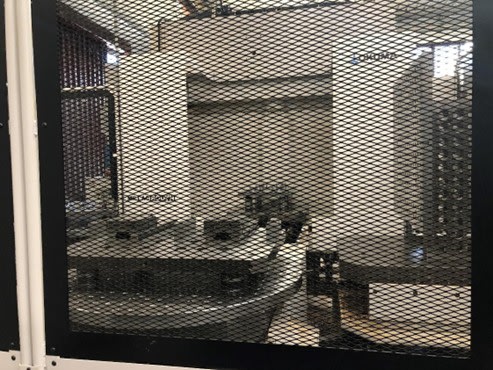

2009 OKUMA MILLAC 800 VH Palletised System 5 Axis Machining Centre With OSP P200M Control

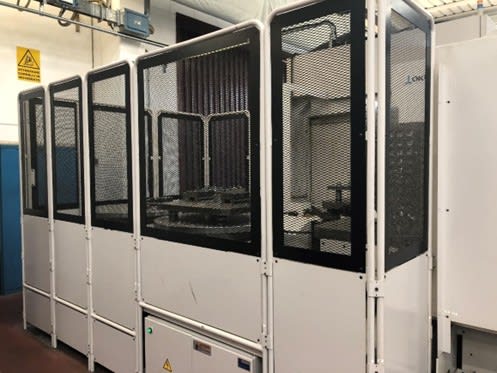

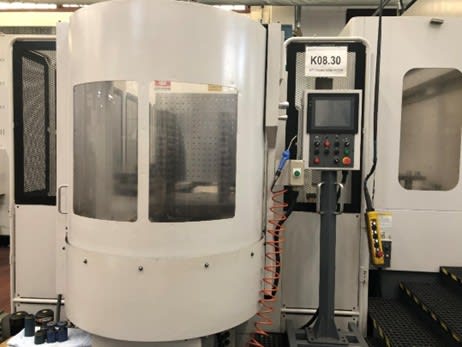

Automatic Pallet Changer (APC) 6-Station Automatic Pallet Pool, Including 4 Additional Pallets. Tool Magazine 120-Station ATC (Automatic Tool Changer). Linear Glass Scales On 'X, Y, Z' axes (In Addition To Standard Encoders). 'A'-Axis Rotary Scale: Circular Glass Scale On Tilting Head Spindle ('A'-Axis), 0.001° Resolution, Equipped With Tilting Brake Clamping. 'C'-Axis Rotary Scale: Circular Glass Scale On Rotary Table ('C'-Axis), 0.001° Resolution, Equipped With Continuous Brake Clamping. Maximum Spindle Speed 10,000rpm (18.5/22 kW Motor), 21 Nm Torque. Spindle Taper BT 50 BIG PLUS. Pallet Dimension 800 x 800mm. Maximum Pallet Load 1,000kg. Axis Travel 'X'=1,020mm, 'Y'=1,020mm, 'Z'=1,020mm. Rapid Traverse 'X'=30m/min, 'Y'==30m/min, 'Z'=30m/min, 'A'=3,600min-1, 'C'=3,600min-1. Cutting Feed 'X, Y, Z'=1-12,000mm/min, 'A, C'=1-2,400°/min. Spindle Nose To Pallet Top (Vertical) -100 To 920mm. Spindle Centre To Pallet Centre (Vertical) -50 To 970mm. Spindle Centre To Pallet Top (Horizontal) 150-1,170mm. Spindle Nose To Pallet Centre (Horizontal) -300 To 720mm. Maximum Tool Ø125mm (Ø200mm Without Adjacent Tool), Maximum Tool Length 400mm, Maximum Tool Weight 20kg. Tool Change Time (T-T) 4.5sec. Power Capacity 60kVA. S/No.143486 (2009/03).
