NUOVO PIGNONE SRL - Vibo - O.M.A & McElroy Finning Machines, ORT Thread Rolling Machine, and Equipment

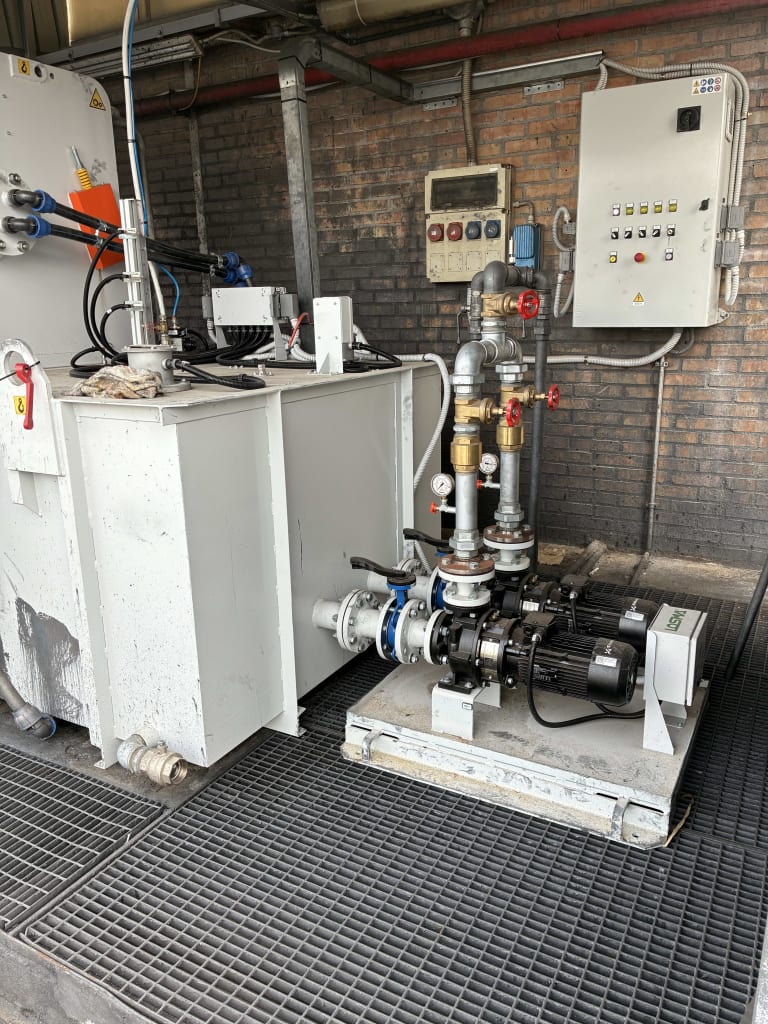

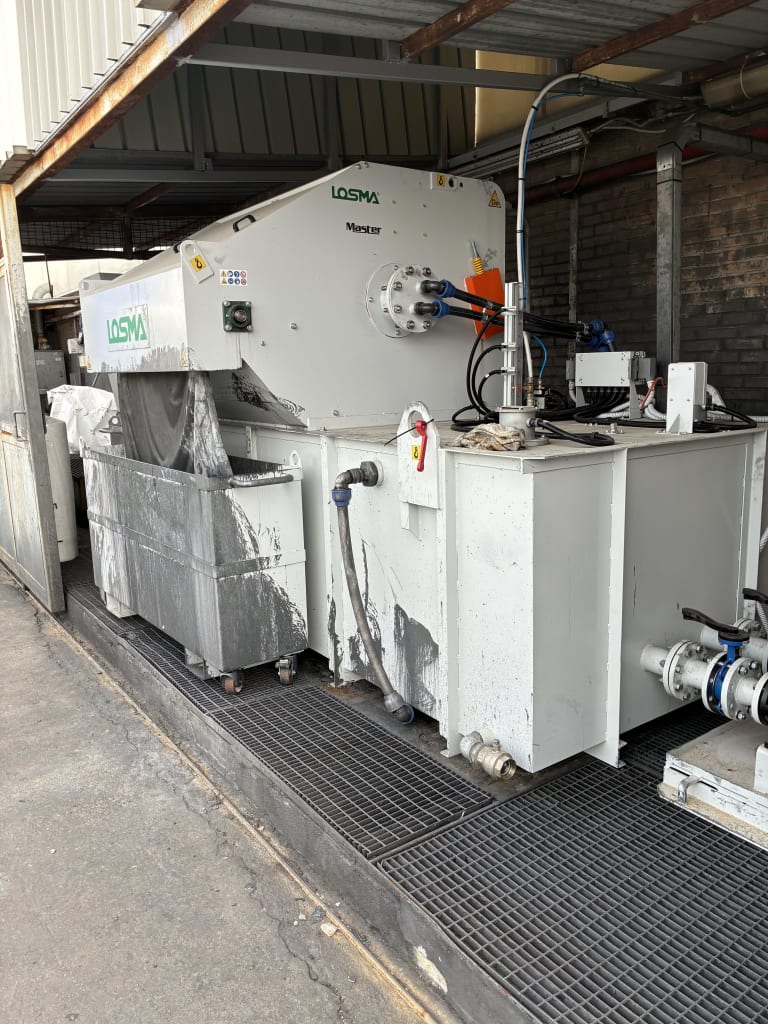

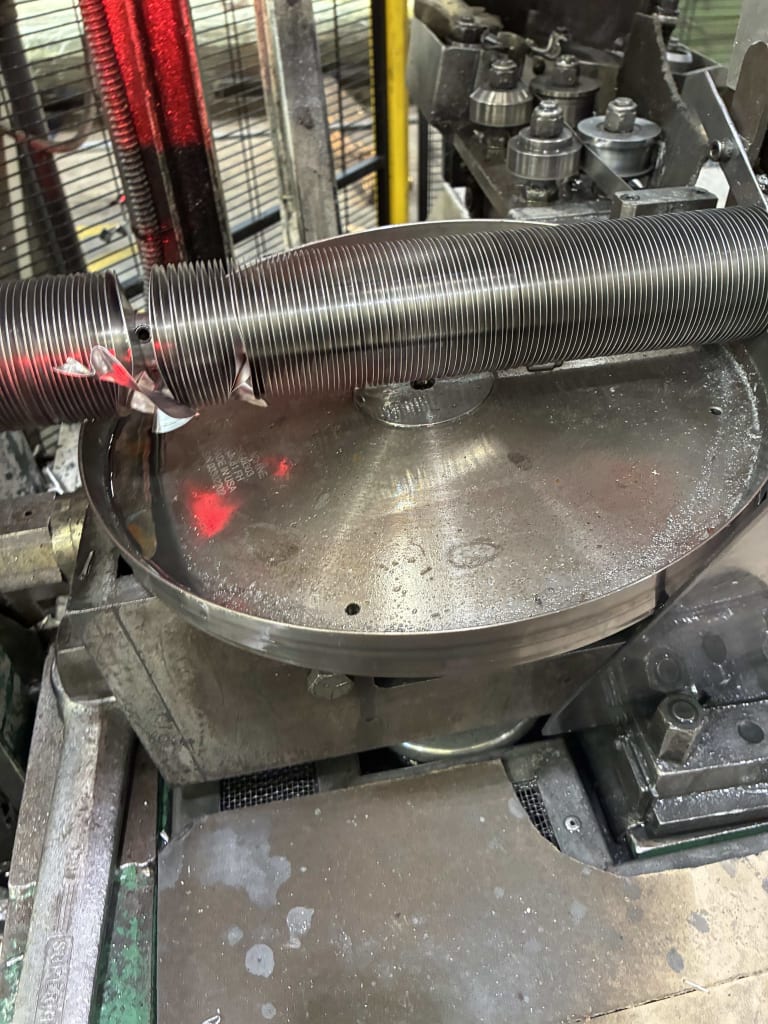

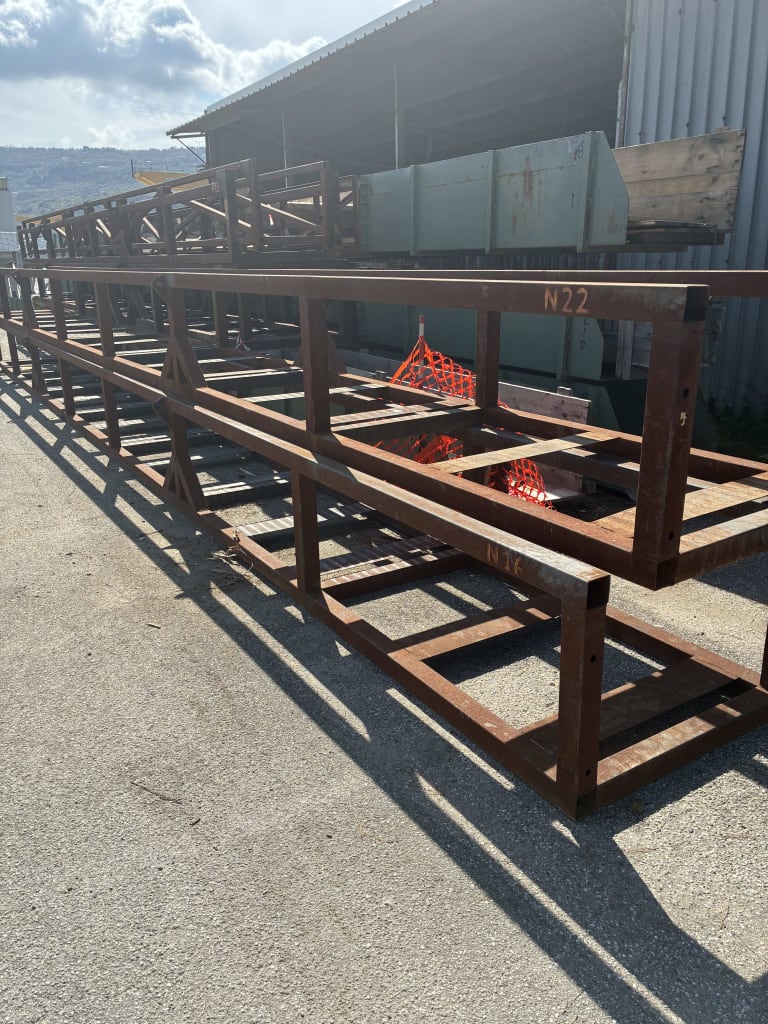

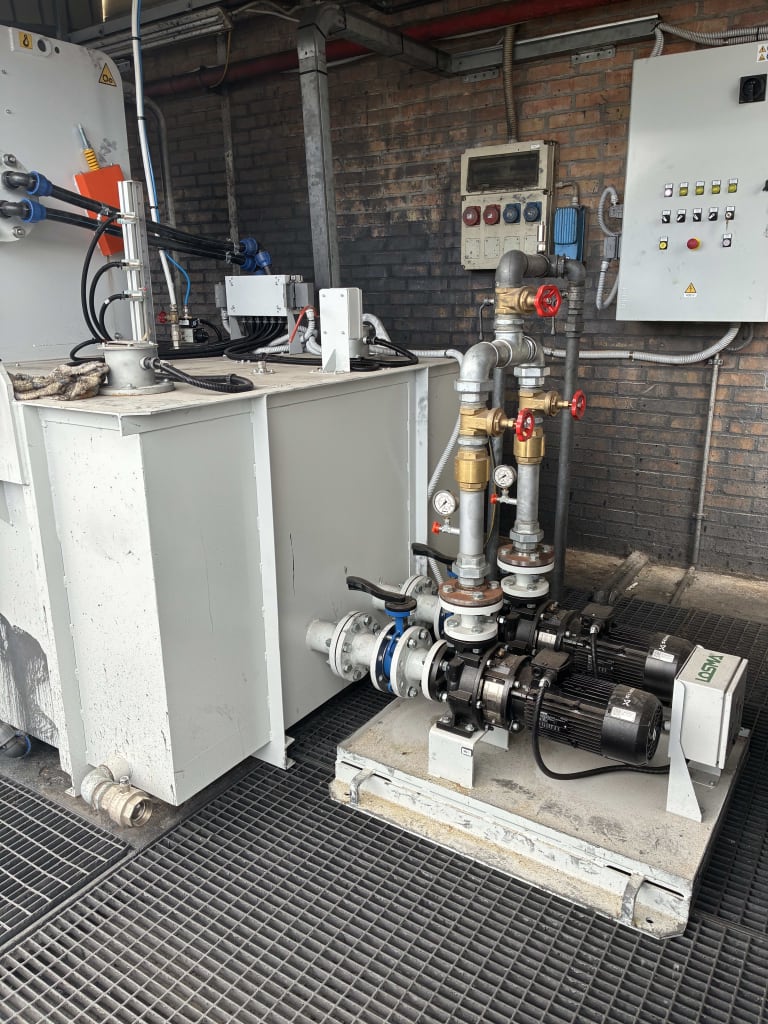

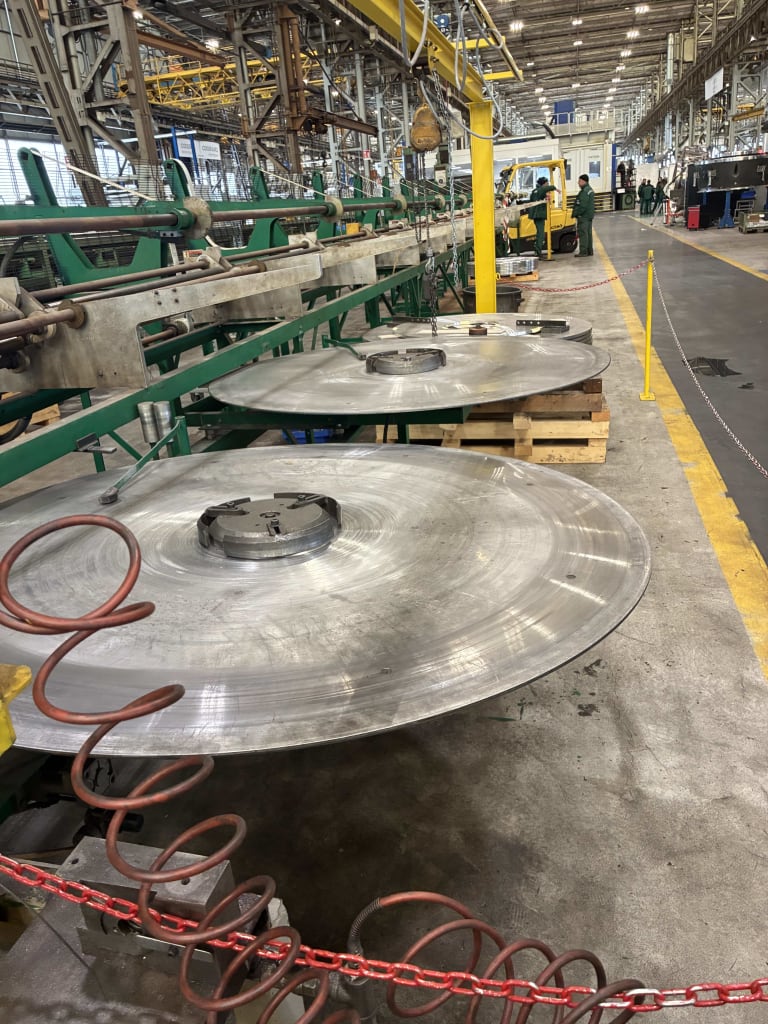

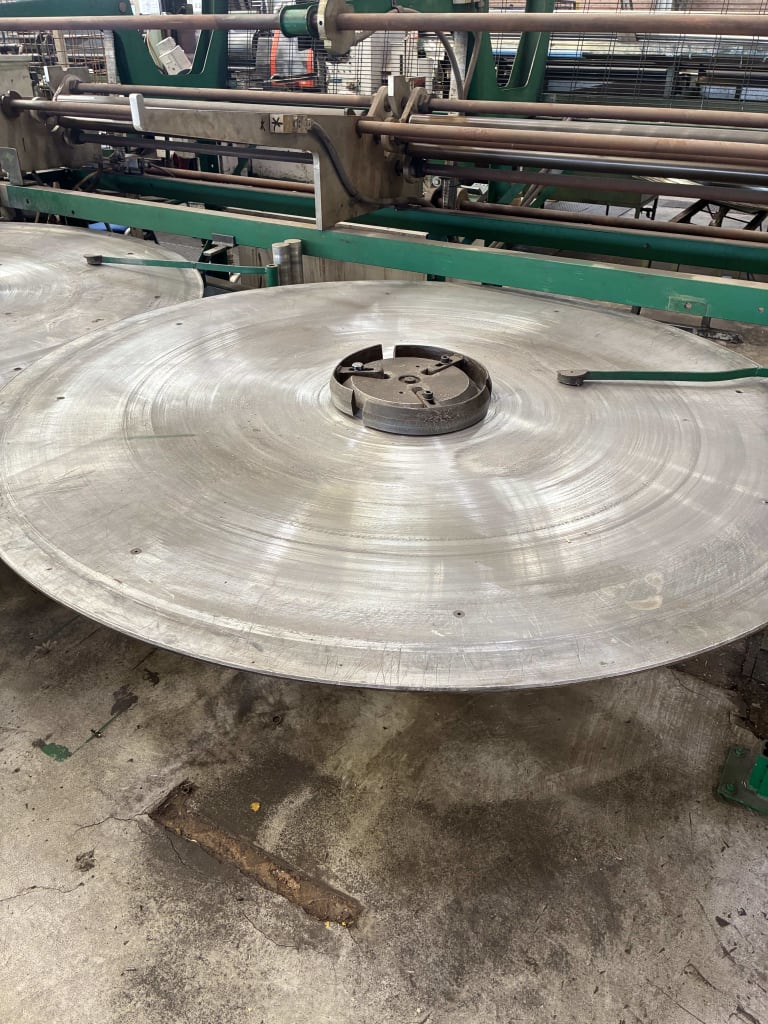

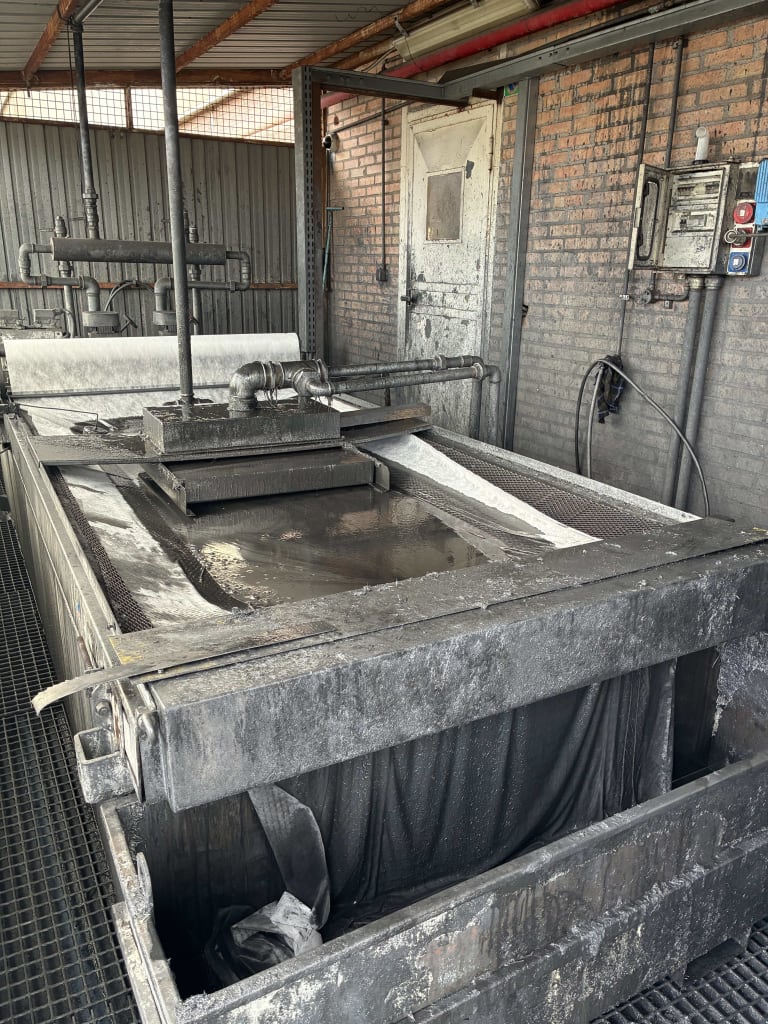

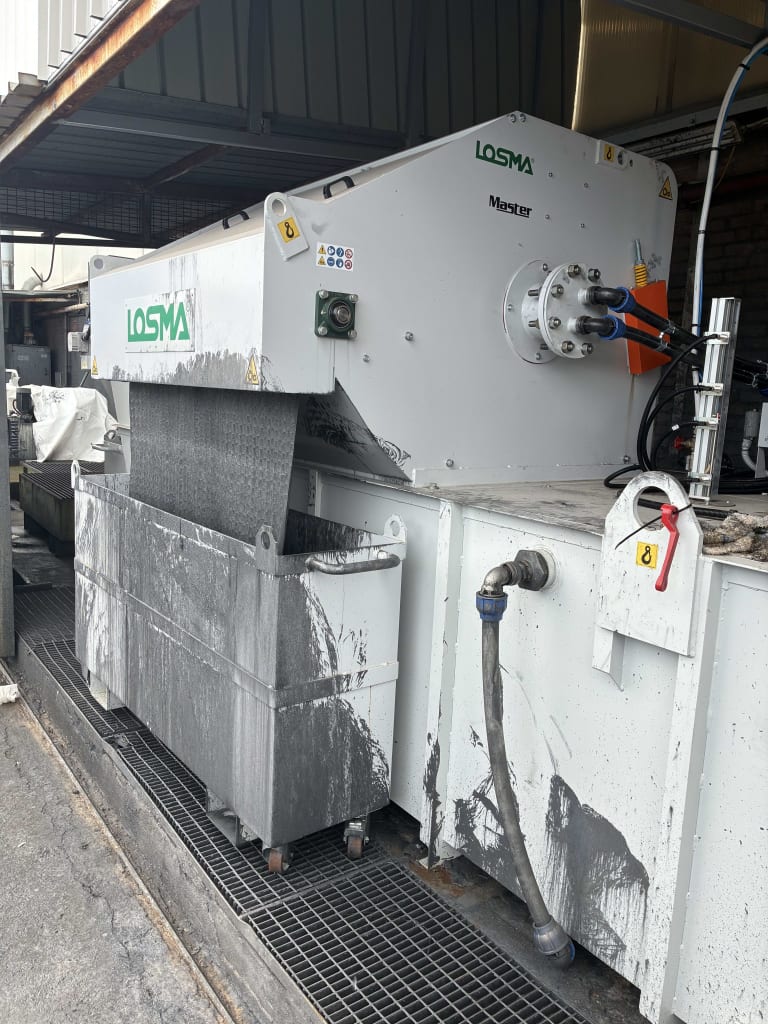

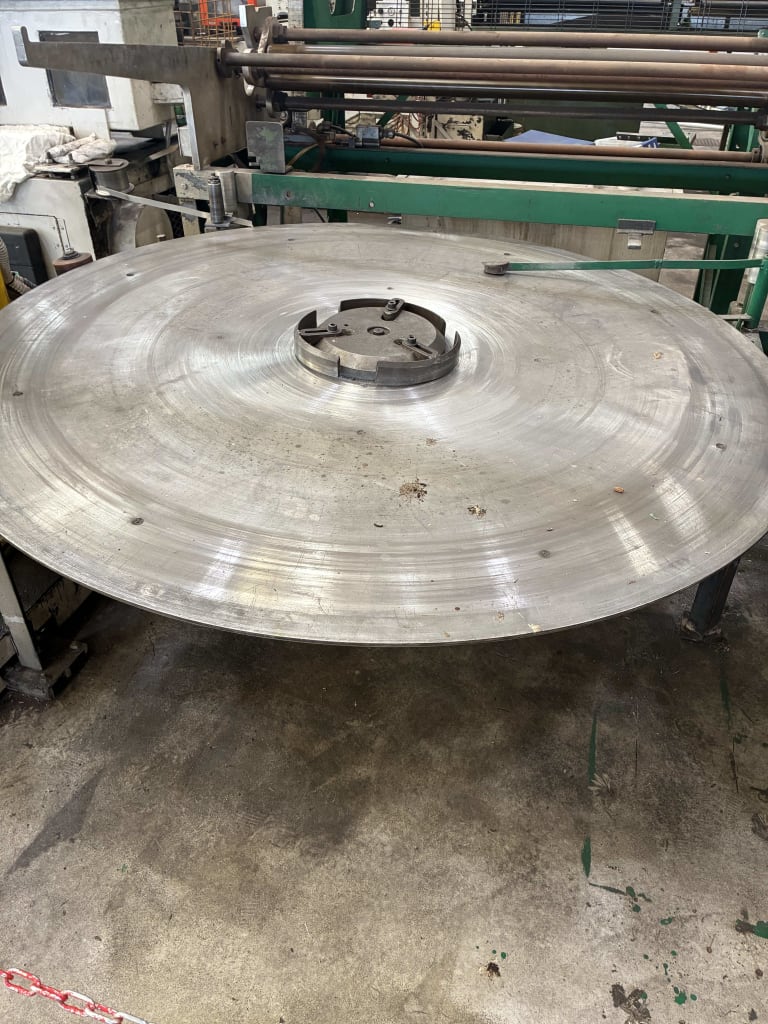

List of machines included in this collective lot: 2001 O.M.A AL.18 Finning Machine with Suction System, with 2025 OMA Finner Emulsion Tank & Filtration System 1997 RULLATRICE 3RP 150 ORT Thread Rolling Machine with 2018 Losma Extruded Emulsion Filtering Tank MCELROY No.5 FINTUBE Machine and Seamers McElroy No.3 FINTUBE Machine and Seamers Qty 5 Tradtional McElroy Dishes Metal Containers For Fins Tubes

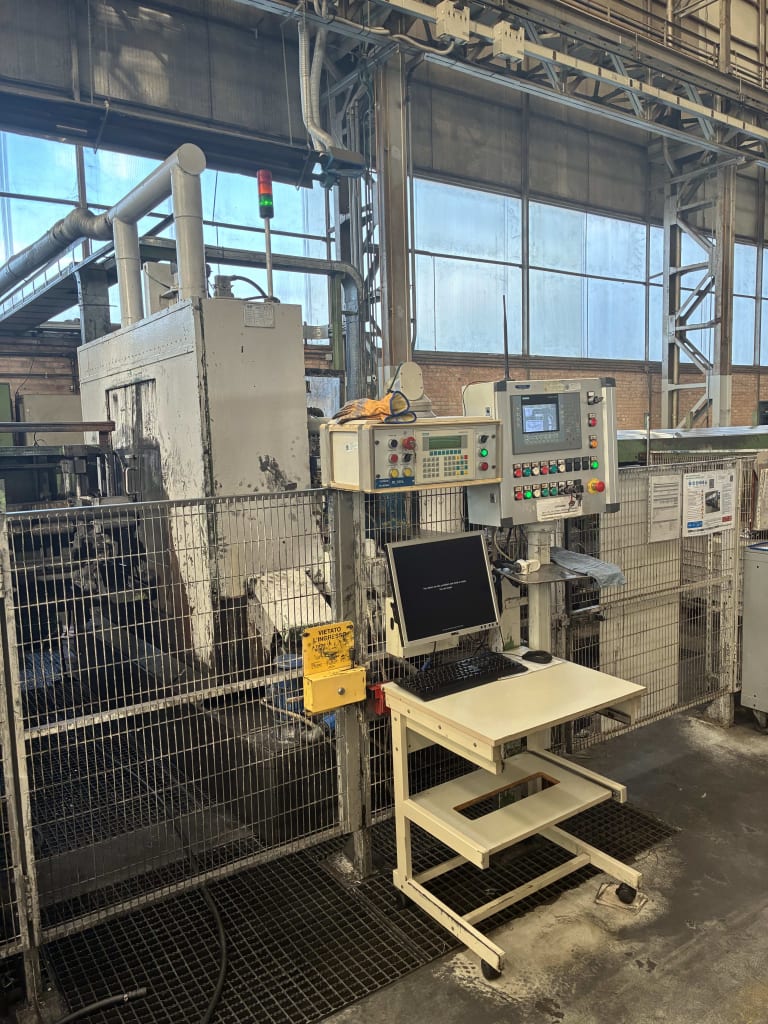

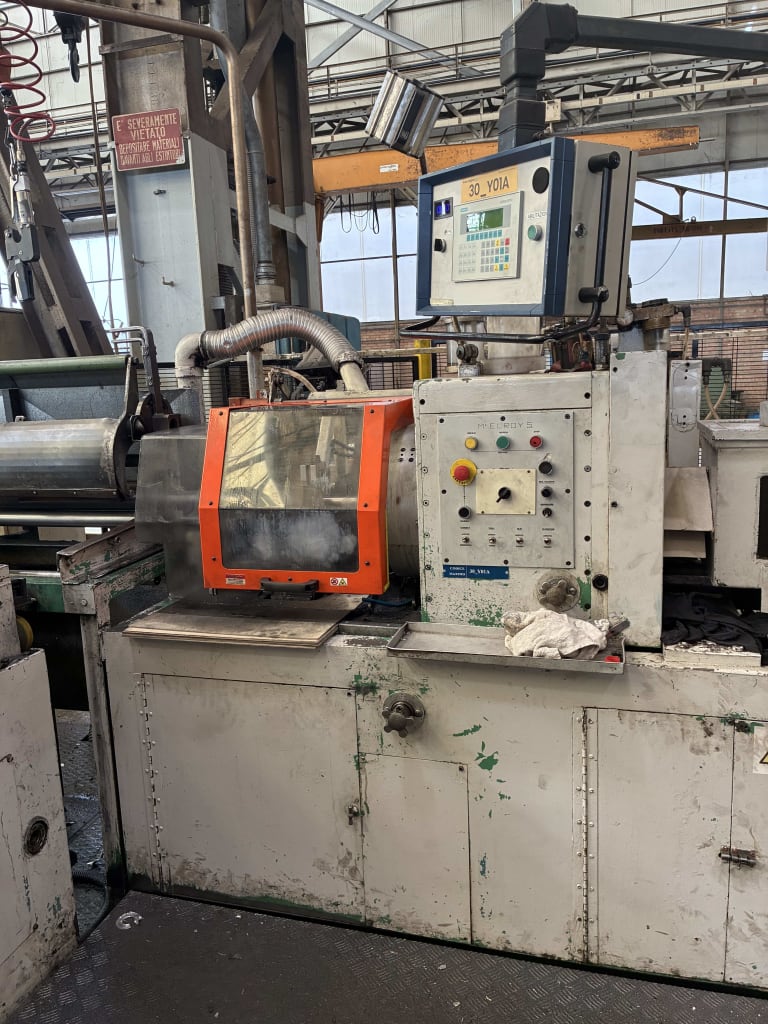

Manufacturer: O.M.A. Year of construction: 2001 General electrical characteristics. Power supply: 3 phases – 50 Hz. Rated voltage: 400 V. Rated current: 400 A. Absorbed power: 250 kW . Total weight: 24,000 kg. Hydraulic / Lubrication / Locking System. n.1 Electric motor 2.2 kW – 4 poles – B5. n. 1 Electric motor 5.5 kW – 4 poles – B5. n. 1 Electric motor 15.0 kW – 4 poles – B3/B5. n. 1 Electric motor 1.50 kW – 4 poles – B5. Installed electric motors: No. 1 Electric motor 2.30 kW – 1400 rpm (Steel warehouse). No. 2 Braked electric motors 0.15 kW – 1400 rpm (Steel/aluminum warehouse). No. 2 Electric motors 1.36 kW – 1400 rpm (Steel/aluminum warehouse). No. 2 Electric motors 0.38 kW – 1400 rpm (Steel/aluminum warehouse). No. 1 Two-shaft electric motor 7.50 kW – 1400 rpm (Finished tube stacking). No. 1 Braked electric motor 0.15 kW – 1400 rpm (Assembled tube warehouse). No. 1 Electric motor 0.18 kW – 1400 rpm (Stripping head advancement). No. 4 Electric motors 3.00 kW – 1400 rpm (Brush machine). No. 1 Electric motor 2.30 kW – 1400 rpm (Tube introduction line in finning machine). No. 1 Electric motor 3.00 kW – 1400 rpm (Roller conveyor). Machine S/No.372, Asset No. S-0130305002.

3 RP 150 Roller – ORT Italia S.p.A. Machine for rolling bimetallic tubes. Maximum rolling force: 62,000 kg. Spindle diameter (option): 60.35 mm. Spindle key: 60.35 × 10 mm. Minimum rollable diameter: 25.4 mm. Maximum rollable diameter: 120 mm. Maximum rollable pitch: 8 mm. Minimum roller diameter: 100 mm. Maximum roller diameter: 190 mm. Minimum center distance: 80 mm. Maximum center distance: 165 mm Installed power. Total installed power: 190 HP. Main motor: 180 HP. Hydraulic unit motor: 7.5 HP Other data. Maximum measured noise: 80 dB. Total machine weight: 10,000 kg. ORT Finned tube facing machine – Manufacturer: C.M.A. Electrical system features. Installed power: 8 kW. Supply voltage: 400 V (three-phase). Auxiliary voltage: 24 V DC. Frequency: 50 Hz. System: electromechanical and hydraulic. External power supply includes a 220 V service socket on the electrical panel and two 220 V sockets mounted on the charger for submersible pump connection. Protection rating: IP54. Operation is electro-hydraulic with OMRON programmer. Machine type: automatic. General technical data: Maximum supply pressure: 50 bar (5 MPa).

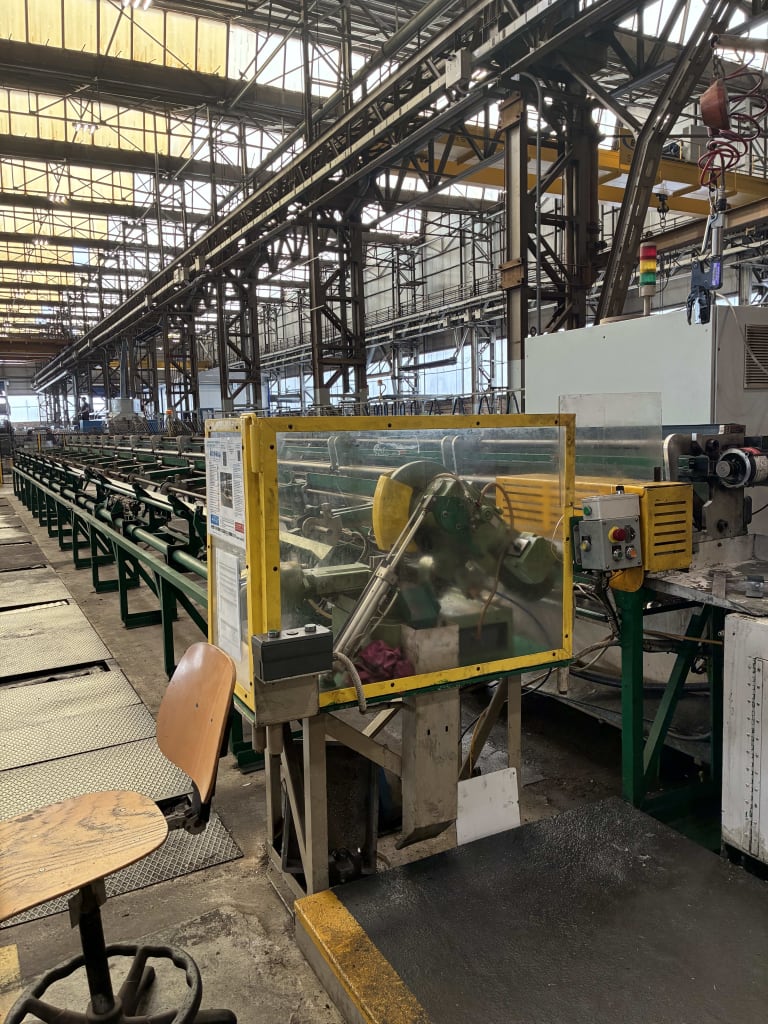

Model MCELORY NO.5 5CM00107. Serial number: C30018. NO. 5 MACHINE CAPABILITIES Tube Size: 0.5” – 2” (12.7mm – 50.8mm) . Fin Heights: 0.25” – 1” (6.35mm – 25.4mm) Fins Per Inch (FPI): 4 – 13 . FIN TYPES: Imbedded (G-Fin), Wrap-on (L-Fin). The No.5 Applied Fintube Machine also has the capability of applying 0.625” carbon steel imbedded fins on 1” and larger tube sizes, as well as 0.375” high stainless steel imbedded fin. NO. LENGTH: 30.5 meters (100 feet). WIDTH: 6.10 meters (20 feet). TYPICAL TUBE LENGTH: 12.19 meters (40 feet). Optional modifications may be available upon request. Other rack lengths are also available. POWER REQUIREMENT: 100 Amps at 460 Volts, 3 Phase. MOTOR: 2-20 HP 460 VAC Motors with digital interface encoding software . ISOLATION TRANSFORMER: 60 kVA, 50 or 60 Hz, 3 Phase. Freestanding transformer matches customer’s incoming plant voltage and steps up or down to provide required 460V AIR: 30 CFM at 100 PSI with dryer. Provided by end user. PLC: interlocked safety system and spindle speed controlled by PLC. Baker Hughes TAG NO.S-2015000111.

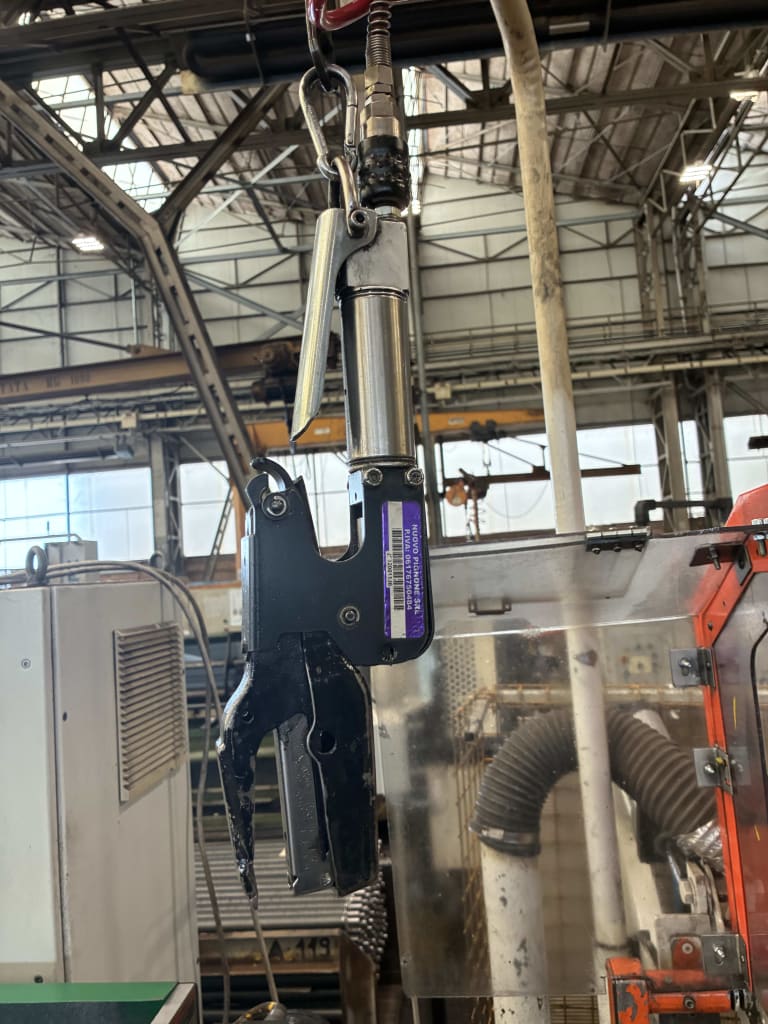

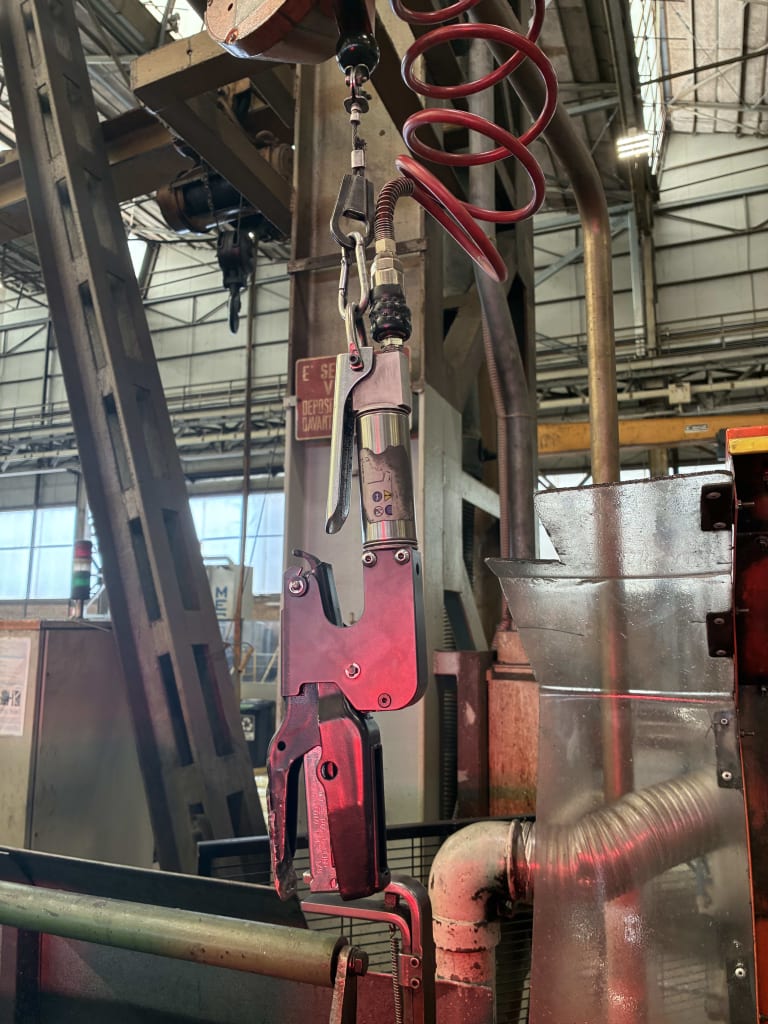

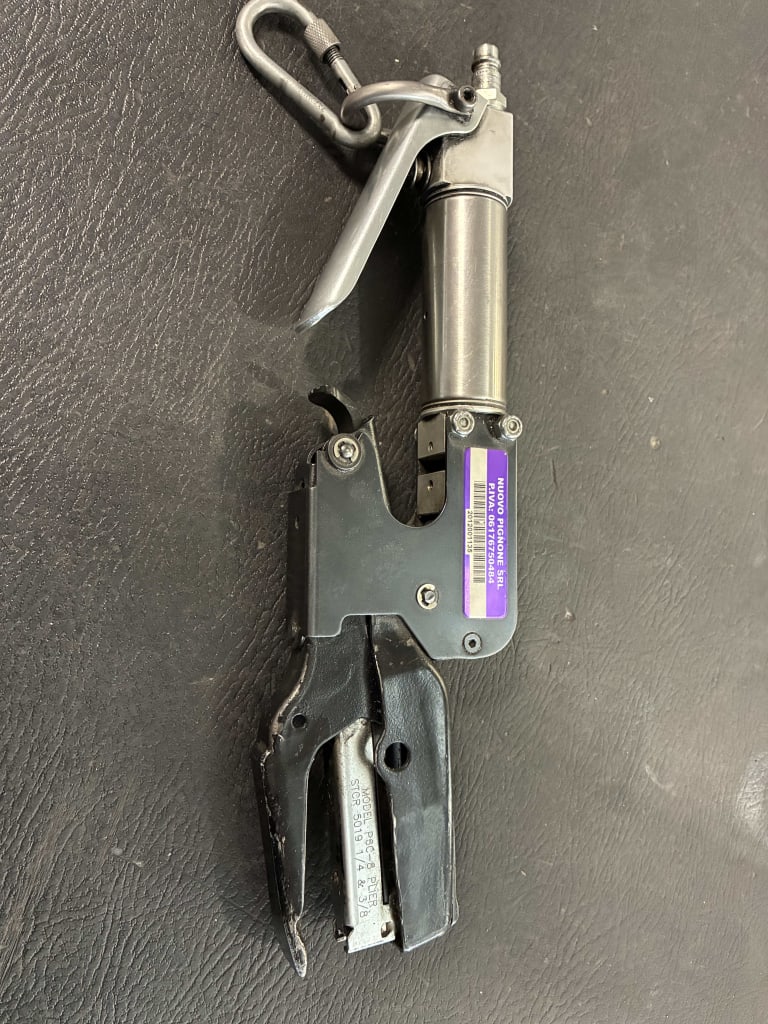

LENGTH: 30.5 meters (100 feet). WIDTH: 6.10 meters (20 feet). TYPICAL TUBE LENGTH: 12.19 meters (40 feet). Optional modifications may be available upon request. Other rack lengths are also available. POWER REQUIREMENT: 100 Amps at 460 Volts, 3 Phase. MOTOR: 2-20 HP 460 VAC Motors with digital interface encoding software . ISOLATION TRANSFORMER: 60 kVA, 50 or 60 Hz, 3 Phase. Freestanding transformer matches customer’s incoming plant voltage and steps up or down to provide required 460V AIR: 30 CFM at 100 PSI with dryer. Provided by end user. PLC: interlocked safety system and spindle speed controlled by PLC. Baker Hughes TAG NO.S-3362400017 & S-3362400015. Including 2 x Seamers: PNEUMATIC SEAMER FOR MC ELROY - S-2012001133 & PNEUMATIC SEAMER FOR MC ELROY - S-2012001135.

Baker Hughes Tag NO: S-2007001224, S-2007001226, S-2007001223.

Baker Asset No. S-2002003012
